Picks & Scrapers

ITEM # HT-BC: VACUMATIC PELLET REMOVER

The HT-BC tool is a double sided tool with different sized scoops on each end. It works great for removing Vac pellets from both types of pellet retainers. It has the smaller size scoop for use on hard rubber Vacumatic pellet retainers on one side. On the other side it has the larger scoop for use in removing Vac pellets from the larger aluminum pellet retainers.

Don’t get the idea that you’re just going to reach in there and pluck that ball out while it’s cold, dry, and tight.  You need to follow the ball removing instructions under “REPAIRING A VACUMATIC FILLING UNIT” in the “Tools for Parker Bodies and Filling Units” menu item on the “TOOLS” page (About the 3rd item down). That should help you ease the pellet out without damage to the pellet retainer.  Made from German Stainless steel.

Herre's a quote from an email I've just received:

$15

ITEM #HT-C:  Back by popular demand! We've re-manufactured & stocked this classic Pentooling pick. It is a double sided spoon for removing the balls from a smaller hard rubber pellet reatiner. It has .061" wide spoon at both ends. The HT-C is especially useful when removing Vacumatic diaphragm balls during restoration. It is a favorite tool of Mike Kennedey.

This tool is the same as the "C" side of the HT-BC (tool listed above) and is identical on both ends.

$15

ITEM #D4: STRAIGHT PICK/PROBE. Our most basic pick or probe. It's a sharp, starting out off the handle at 0.12" and going to a needle point (be carefull - it's sharp!).

$7

ITEM #D3: CURVED PICK/PROBE. Similar to our D4 straight probe, this is our second most basic probe. It's also very sharp but has a curved tip instead of being straight. Good for poking and probing and also works very well for cleaning or enlarging ink flow channels in feeds.

$7

ITEM #D12:  A 1mm RIGHT ANGLE NANOPROBE / PICK. Ideal for removing Sheaffer O-rings and cap clip anchors, to name a few applications. The tiny tips of this tool are delicate, so think of it as an instrument, not a crowbar.

$12

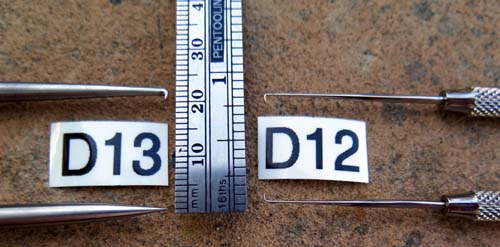

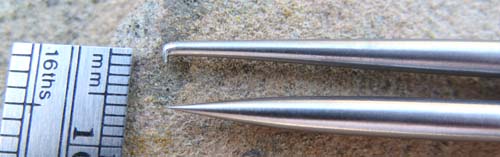

ITEM #D13: TINY RIGHT ANGLE MICRO PROBE. Somewhat heavier duty than the more delicate D12 Nano Probe (listed below). A double sided probe that has a right angle probe on one side and a straight, pointed probe on the other.

$12

ITEM #D20: TINY HOOK PROBE / PICK.  The hook has a .077" (1.94mm) outer diameter. Great for getting way down in there and pulling small things out.

$7

ITEM #D21: 3 DIMENSIONAL TINY HOOKED PROBE / PICK.  This hook has a 1/16" (1.58mm) outer diameter, and the hook is in a plane which is at an angle of 90 degrees to the shaft of the probe. Think working sideways way down in there.

$7

ITEM #D14: FOUNTAIN PEN SAC RESIDUE REMOVER - DOUBLE SIDED.  Ideal for removing the hardened latex sac material that has welded itself to the inside of your pen barrel. Two sides, one measuring .21" (5.25mm) wide and the other measuring .163" (4.15mm) wide. And they are each at different angles to the shaft to provide two different approaches.

$10

ITEM #HT-E: LARGE BURNISHER, .27" (7mm) WIDE.  Also usable as a large sac scraper (remover) for large pens such as Duofold Seniors. Made from German Stainless steel.

$10

ITEM #HT-U, HT-UG: FINE GENERAL PURPOSE PICKs THAT ARE VERY SUITED FOR VACUMATIC FILLING UNIT PELLET REMOVAL AND FEED CHANNEL CLEANING, DEEPENING AND WIDENING (To adjust flow) .  (Note: you need to use a bud burr - available/listed below - to put a tiny hole in the old pellet before using these tools if you're using them to remove a pellet).

These tools are also ideal for cleaning or enlarging ink channels in feeds.

We offer two types of these, one with a triangular cross section on each end (HT-U), and a new version with both triangular and round cross section tips on opposite ends of the same handle (HT-UG). If you’re new at Vacumatic filling unit pellet removal, you probably want to use the circular cross section.  It’s a little less capable of doing damage than the one with a triangular cross section on the tip.   The triangular one is a little more useful, but only in the right hands.  If you’re not good with tools or just beginning, use the round cross section pick.  The triangular one grips the pellet much better, and the pellet will be more likely to rotate with the pick to ease it out.  But the sharp edges of the triangular cross section can do damage to the hard rubber socket if you’re not real careful. Made from German Stainless steel.

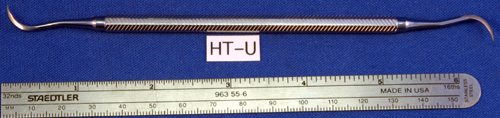

#HT-U, triangular cross section on both sides (BELOW): $10

#HT-UG, triangular cross section on one side and a round cross section on the other end (BELOW): $15

VACUMATIC PELLET REMOVAL SPOONS (NEXT 3 ITEMS BELOW):

Here’s a summary of the spoon widths offered:
HT-A = 0.111” - good for aluminum pellet retainers.
HT-B = 0.076” – good for aluminum pellet retainers.
HT-BC: one side = 0.061” - good for hard rubber pellet retainers & the other side = 0.076” - good for aluminum pellet retainers.
Note that we offer (2) sizes of spoons for aluminum pellet retainers, HT-A & HT-B.

ITEM # HT-A:  A well defined spoon shape that works great for removing the diaphragm pellets from aluminum Vacumatic filling unit sockets. This size is a little tight inside a hard rubber Vacumatic socket. (See HT-BC for that application). The filling unit pellet fits right into the curvature of the spoon. This is a double sided tool with identical ends on each side. Don’t get the idea that you’re just going to reach in there and pluck that pellet out while it’s cold, dry, and tight.  You need to follow the pellet removing instructions under “REPAIRING A VACUMATIC FILLING UNIT” in the “Tools for Parker Bodies and Filling Units” menu item on the “TOOLS” page (About the 3rd item down). That should help you ease the pellet out without damage to the pellet retainer.  Made from German Stainless steel.

SOLD OUT $15

CURRENTLY MANUFACTURING MORE

ITEM # HT-B:   A tiny curved spatula, slightly smaller in width but much thinner (flatter) than the spoon on HT-A.   This is a double sided tool with identical ends on each side. Works great on Aluminum Vacumatic filling unit socket pellet removal, and  It’s also useable on Hard rubber sockets, but HT-BC has a similar shape and is better suited for the smaller hard rubber sockets and it's less likely to cause breakage in hard rubber.  Again, don’t get the idea that you’re just going to reach in there and pluck that pellet out while it’s cold, dry, and tight.  You need to follow the pellet removing instructions under “REPAIRING A VACUMATIC FILLING UNIT” in the “Tools for Parker Bodies and Filling Units” menu item on the “TOOLS” page (About the 7th item down). That should help you ease the pellet out without damage to the pellet retainer.  Made from German Stainless steel.

$15

BELOW: Front-side, Back-side, and side-view of ends (both ends are same).

ITEM #BUD BURR: PARKER VAC PELLET REMOVAL BURR. An ideal tool for putting a pinhole in the pellet left over from a deteriorated diaphragm in a Parker Vacumatic. This will leave a hole the correct size for a pick to follow and complete the ball rremoval job. Small enough to fit through the hole that the filling unit has in it. You may want to add liquid (as a lubricant - diluted detergent solutions work well) followed by a little heat to soften things up and avoid damaging the brittle hard rubber socket that some Vacs use. DON'T USE A HEAT GUN!!!  Use this tool in a rotary tool such as a Dremel or flex-shaft grinder in conjunction with a pick. This has a 3/32" shaft.

Another helpfull tool for this job is a vacumatic ball drilling shield to protect hard rubber sockets from damage while boring a hole in the ball.

$5

ITEM #WHEEL BURR: A PARKER VAC TOOL TO HELP IN THE CLEAN -OUT OF HARDENED RESIDUE REMAINING IN THE DIAPHRAGM SOCKET AFTER THE BALL IS REMOVED. Use this tool in a rotary tool such as a Dremel or flex-shaft grinder in conjunction with a pick. This has a 3/32" shaft.

$5
