Sheaffer Parts

SHEAFFER SCHEMATIC

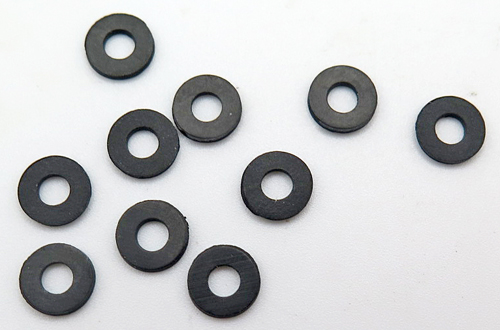

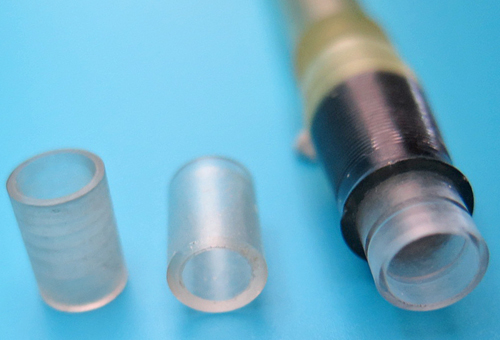

ITEM #PFMPOINT: PFM POINT HOLDER GASKETS.   These gaskets go in the tip of a Sheaffer PFM fountain pen, in front of the metal washer and the threaded connector. The originals of these gaskets were molded with a few rings on the surface and different thicknesses on different areas of the gasket. The ones offered here are punched out of a high nitrile mateial, and if you ask the guy that wrote the book (His initials rhyme with "J.M."), it doesn't make any difference which of the two types is used. I've used these in my own restorations with very good and consistent results.

10 FOR $20

PFM POINT HOLDER GASKETS
To buy please email Pentooling. Be sure and provide a shipping address including city and state/province so we can calculate shipping costs and get your order to you.Please make sure your Paypal profile has the correct shipping address. We use them to generate shipping labels and I can only ship to the address they give me. All items will be shipped to your Paypal address. Please update your address with Paypal when you pay,and please make sure to provide Paypal with a correct, precise and detailed shipping address.

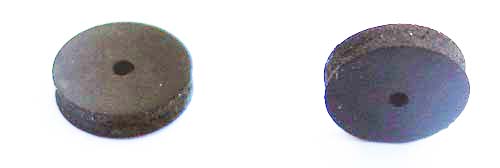

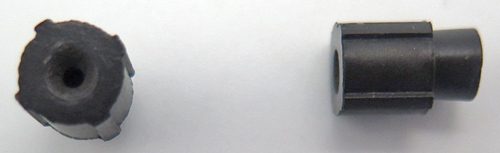

ITEM #SNORKPOINT HOLDER GASKETS.   These gaskets go in the tip of a Sheaffer standard sized fountain pen, between the nib unit and the section. The originals of these gaskets were molded with a few rings on the surface and different thicknesses on different areas of the gasket. The ones offered here are punched out of a high nitrile mateial, and if you ask the guy that wrote the book (His initials rhyme with "J.M."), it doesn't make any difference which of the two types is used. I've used these in my own restorations with very good and consistent results.

Ten for $20

Sheaffer Snorkel point holder gaskets
To buy please email Pentooling. Be sure and provide a shipping address including city and state/province so we can calculate shipping costs and get your order to you.Please make sure your Paypal profile has the correct shipping address. We use them to generate shipping labels and I can only ship to the address they give me. All items will be shipped to your Paypal address. Please update your address with Paypal when you pay,and please make sure to provide Paypal with a correct, precise and detailed shipping address.

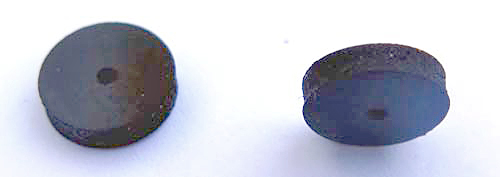

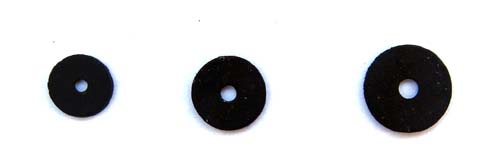

ITEM #VAC FIL SEAL: FRONT PLUNGER SEALS FOR SHEAFFER VAC FIL FOUNTAIN PENS (for the FRONT END OF PLUNGER, AS OPPOSED TO REAR PLUNGER SHAFT SEALS). These come in 3 sizes with the following APPROXIMATE diameters, very close to what Sheaffer used:

Small, approx. 9/32" (7mm)

Medium, approx. 5/16" (8mm)

Over Sized, approx. 3/8" (9.5mm)

10 of any one size $20

or,

Assortment Pack with 2 of each size $12

SEALS FOR SHEAFFER VAC FIL PENS
To buy please email Pentooling. Be sure and provide a shipping address including city and state/province so we can calculate shipping costs and get your order to you.Please make sure your Paypal profile has the correct shipping address. We use them to generate shipping labels and I can only ship to the address they give me. All items will be shipped to your Paypal address. Please update your address with Paypal when you pay,and please make sure to provide Paypal with a correct, precise and detailed shipping address.

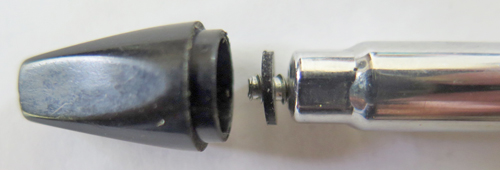

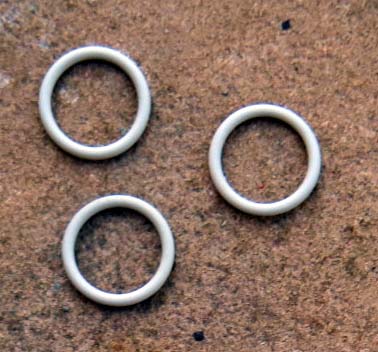

ITEM #PFMRINGS: O-RINGS FOR THE BACK END OF SHEAFFER PFMS AND THE LARGER (LATER) TOUCHDOWNS.  These O-Rigs fit in the groove in the back of the barrel just below the blind cap. See also the S24 & D19 O-Ring seaters on the Sheaffer tools page. These tools provide a platform inside the pen barrel to help guide the new O-Ring into the groove, saving a lot of time and frustration.

Pkg. of 10 for $20

O-RINGS FOR THE BACK END OF PFMS AND THE LARGER (LATER) TOUCHDOWNS
To buy please email Pentooling. Be sure and provide a shipping address including city and state/province so we can calculate shipping costs and get your order to you.Please make sure your Paypal profile has the correct shipping address. We use them to generate shipping labels and I can only ship to the address they give me. All items will be shipped to your Paypal address. Please update your address with Paypal when you pay,and please make sure to provide Paypal with a correct, precise and detailed shipping address.

Pkg. of 10 for $20

O-RINGS FOR THE BACK END OF PFMS AND THE LARGER (LATER) TOUCHDOWNS
To buy please email Pentooling. Be sure and provide a shipping address including city and state/province so we can calculate shipping costs and get your order to you.Please make sure your Paypal profile has the correct shipping address. We use them to generate shipping labels and I can only ship to the address they give me.

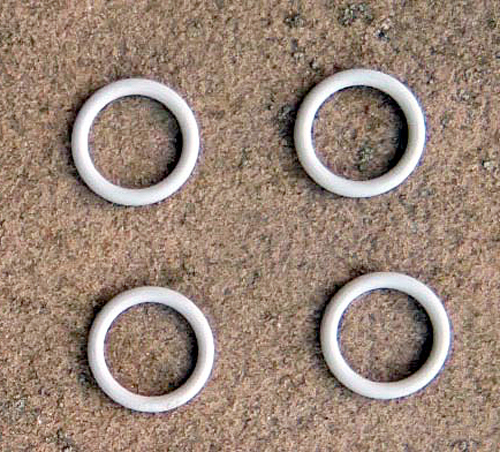

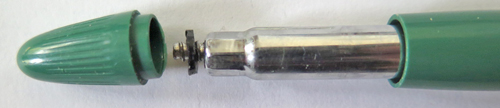

ITEM #SNORKLRNGS: O-RINGS FOR THE BACK END OF SHEAFFER SNORKEL AND EARLIER (SMALLER) TOUCHDOWN PENS.  These O-Rigs fit in the groove in the back of the barrel just below the blind cap. See also the the D19 O-Ring seaters on the Sheaffer tools page. These tools provide a platform inside the pen to help guide the new O-Ring into the groove, saving a lot of time and frustration.

Pkg. of 10 for $20

O-RINGS FOR THE BACK END OF SHEAFFER SNORKEL AND EARLIER (SMALLER) TOUCHDOWN PENS
To buy please email Pentooling. Be sure and provide a shipping address including city and state/province so we can calculate shipping costs and get your order to you.Please make sure your Paypal profile has the correct shipping address. We use them to generate shipping labels and I can only ship to the address they give me. All items will be shipped to your Paypal address .Please update your latest address when you pay,and please make sure to provide Paypal with correct, precise and detailed shipping address.

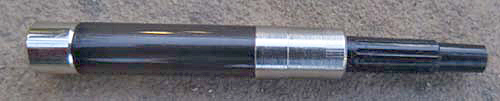

ITEM #SH CONV:  SHEAFFER FOUNTAIN PEN PISTON CONVERTER. Typcal Sheaffer fat profile.

$15

SHEAFFER FOUNTAIN PEN PISTON CONVERTER

To buy please email Pentooling. Be sure and provide a shipping address including city and state/province so we can calculate shipping costs and get your order to you.INTERNATIONAL BUYERS PLEASE INCLUDE YOUR PHONE NUMBER SO YOUR POSTAL SERVICE CAN NOTIFY YOU WHEN REQUIRED.

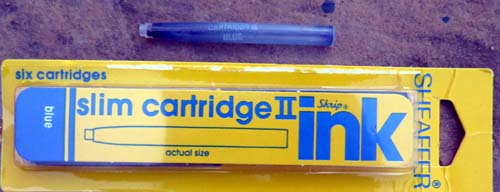

ITEM #SHEAF SLIM: SHEAFFER SLIM CARTRIDGE II FOR FOUNTAIN PENS.  These are empty, dried - out and not punctured. They will need to be cleaned out before use, but this slim profile isn't made anymore, so you can fill these with a syringe and use them in pens. Come 6 in a pack. Cleaning would typically be done by puncturing the front end with the puncture tube of a pen that it fits, flushing it out with a syringe and a detergent solution, or ultrasonic cleaning after filling with water and/or detergent. The pens that these fit also use a rare shaped/size converter, so these may rescue you if you have one of the pens that need them.

$15 for (6)

SHEAFFER SLIM CARTRIDGES FOR FOUNTAIN PENS

To buy please email Pentooling. Be sure and provide a shipping address including city and state/province so we can calculate shipping costs and get your order to you.INTERNATIONAL BUYERS PLEASE INCLUDE YOUR PHONE NUMBER SO YOUR POSTAL SERVICE CAN NOTIFY YOU WHEN REQUIRED.

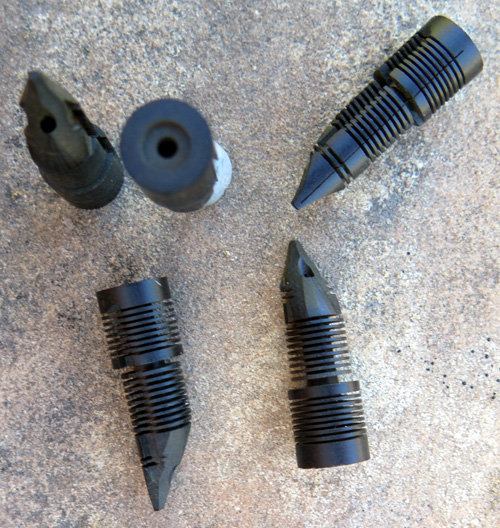

ITEM #PFMFEED: NEW FEEDS FOR SHEAFFER PFM.   New old stock. These were rescued on the way out to the dumpster while the Sheaffer plant was being dismantled.

$20

NEW feeds for sheaffer PFM

To buy please email Pentooling. Be sure and provide a shipping address including city and state/province so we can calculate shipping costs and get your order to you.INTERNATIONAL BUYERS PLEASE INCLUDE YOUR PHONE NUMBER SO YOUR POSTAL SERVICE CAN NOTIFY YOU WHEN REQUIRED.

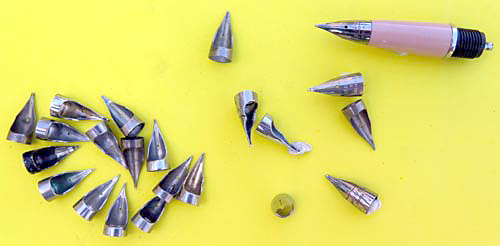

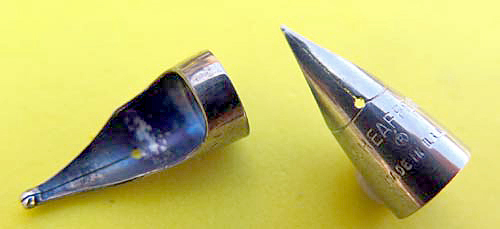

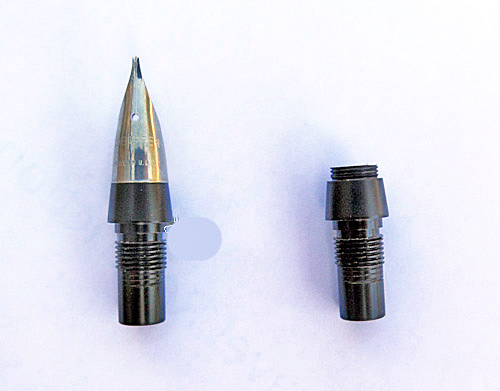

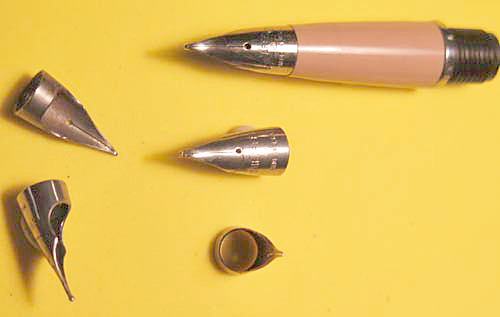

ITEM #SH NIB D: LADY SHEAFFER STEEL TRIUMPH NIBS.  Available in Acc, XF, F, M, B. These don't include the section shown in the photos; that was shown to help define the pens that use these.

$10ea

LADY SHEAFFER STEEL TRIUMPH NIBS

LADY SHEAFFER STEEL TRIUMPH NIBS

LADY SHEAFFER STEEL TRIUMPH NIBS

To buy please email Pentooling. Be sure and provide a shipping address including city and state/province so we can calculate shipping costs and get your order to you.Please make sure your Paypal profile has the correct shipping address. We use them to generate shipping labels and I can only ship to the address they give me. All items will be shipped to your Paypal address. Please update your address with Paypal when you pay,and please make sure to provide Paypal with a correct, precise and detailed shipping address.

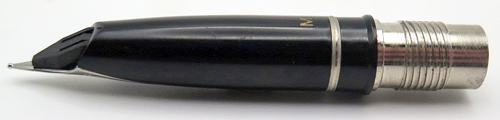

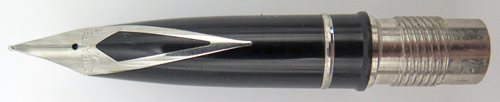

ITEM #STEELSTDTARGA: STEEL NIBS FOR STD TARGA. NEW OLD STOCK Available in XXFine, XFine, Fine, Medium, Broad and Double Broad. Please specify when ordering. Please be aware of the size differences between the Standard sized Targa and the Slim Targa: The standard sized Targa has an inside diameter on the barrel threads of 0.384" and the Slim Targa barrel has an inside diameter of 0.293".

Fine, Med & Broad: $30

XXFine & Double Broad: $40

To buy please email Pentooling. Be sure and provide a shipping address including city and state/province so we can calculate shipping costs and get your order to you.Please make sure your Paypal profile has the correct shipping address. We use them to generate shipping labels and I can only ship to the address they give me. All items will be shipped to your Paypal address. Please update your address with Paypal when you pay,and please make sure to provide Paypal with a correct, precise and detailed shipping address.

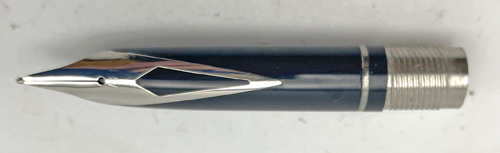

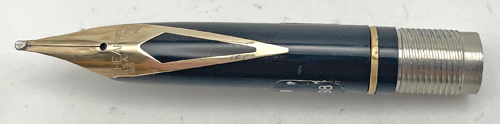

ITEM #TARGANIBSTEEL: STEEL NIBS FOR SLIM TARGA. NEW OLD STOCK Available in XFine, Fine, Medium and Broad. Please specify when ordering. Please be aware of the size differences between the Standard sized Targa and the Slim Targa: The standard sized Targa has an inside diameter on the barrel threads of 0.384" and the Slim Targa barrel has an inside diameter of 0.293".

$30

To buy please email Pentooling. Be sure and provide a shipping address including city and state/province so we can calculate shipping costs and get your order to you.INTERNATIONAL BUYERS PLEASE INCLUDE YOUR PHONE NUMBER SO YOUR POSTAL SERVICE CAN NOTIFY YOU WHEN REQUIRED.

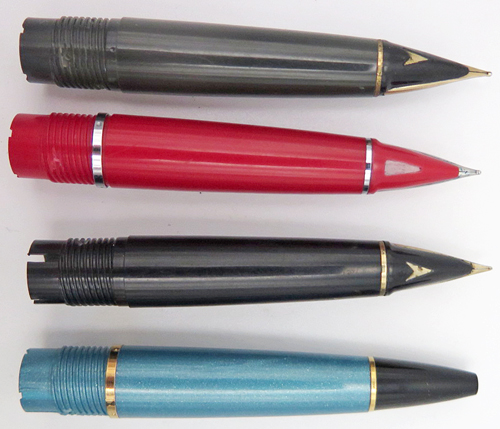

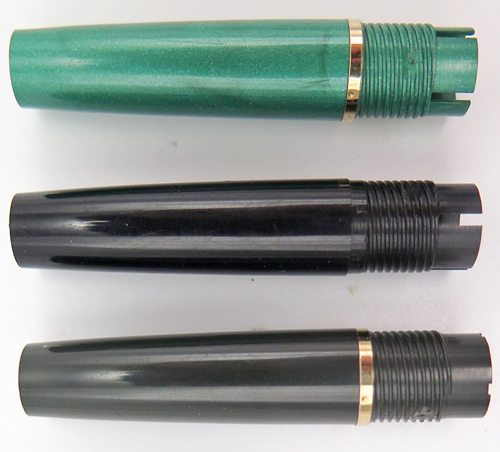

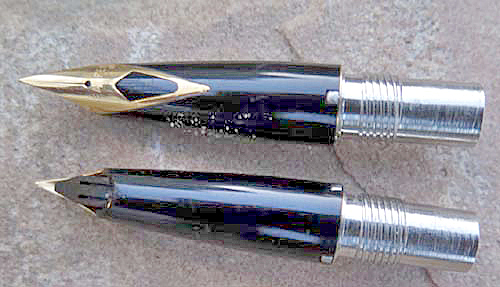

ITEM #200 SH 330 FRONT ENDS, GP: GOLD PLATED FRONT ENDS FOR CARTRIDGE FILLING HEAFFER 330 IMPERIAL FOUNTAIN PENS. Available in Fine, Med, & Broad only.

$30

GOLD PLATED FRONT ENDS FOR CARTRIDGE FILLING HEAFFER 330 IMPERIAL FOUNTAIN PENS.

To buy please email Pentooling. Be sure and provide a shipping address including city and state/province so we can calculate shipping costs and get your order to you.INTERNATIONAL BUYERS PLEASE INCLUDE YOUR PHONE NUMBER SO YOUR POSTAL SERVICE CAN NOTIFY YOU WHEN REQUIRED.

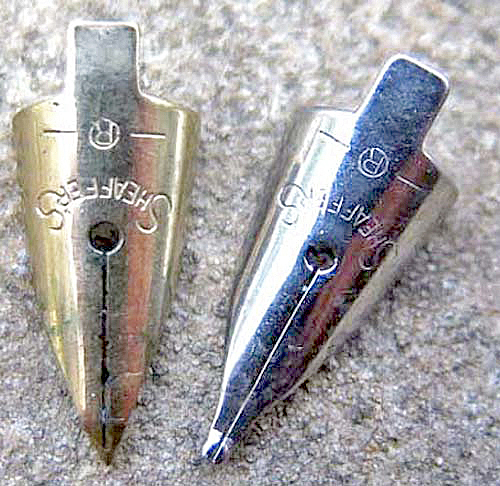

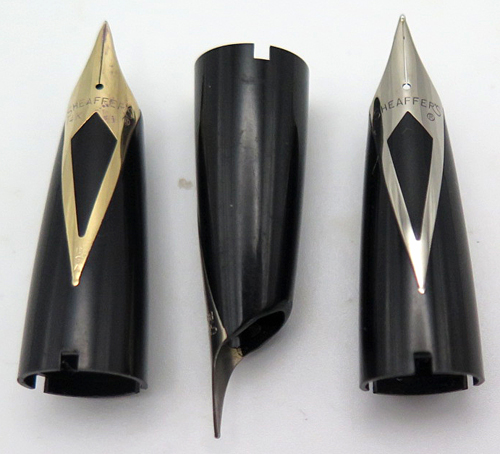

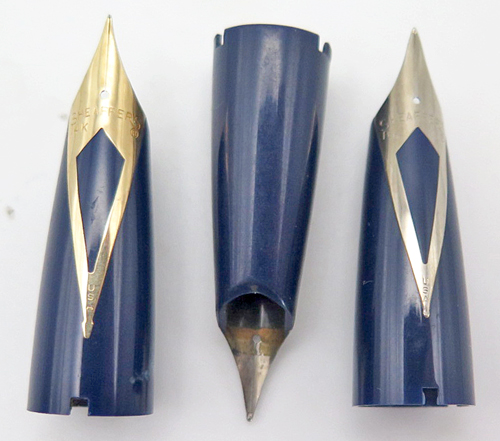

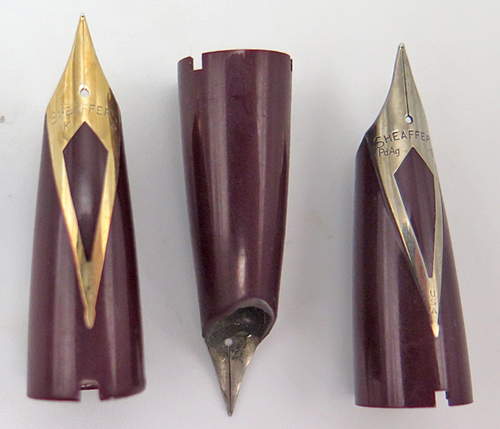

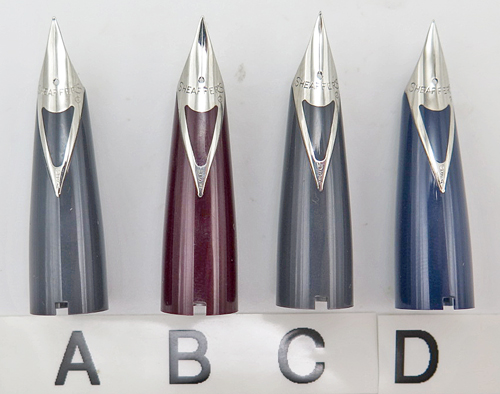

ITEM #202 SHEAF NIB A/B: SHEAFFER SMALLER NIBS IN GOLD. ALSO IN STEEL.  Specify width and your preference for gold or steel.

GOLD $20

STEEL $15

202 SHEAF NIB A
To buy please email Pentooling. Be sure and provide a shipping address including city and state/province so we can calculate shipping costs and get your order to you.Please make sure your Paypal profile has the correct shipping address. We use them to generate shipping labels and I can only ship to the address they give me.

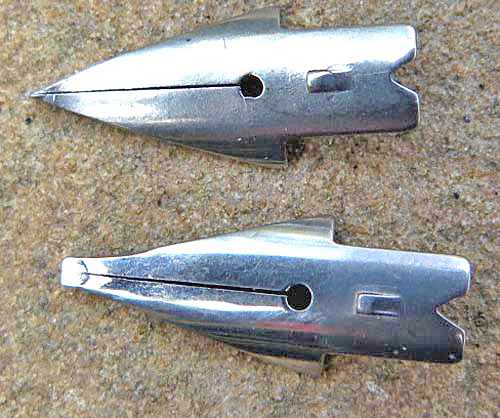

ITEM #202 SHEAF NIB C: SMALLER SHEAFFER NIBS IN STEEL.  Specify width desired.

$15

SMALLER SHEAFFER NIBS IN STEEL
To buy please email Pentooling. Be sure and provide a shipping address including city and state/province so we can calculate shipping costs and get your order to you.Please make sure your Paypal profile has the correct shipping address. We use them to generate shipping labels and I can only ship to the address they give me.

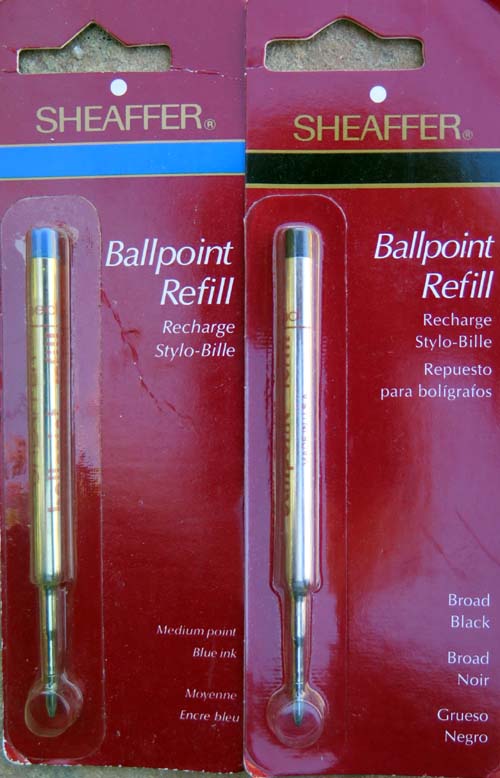

ITEM #SHEAF FILLER: SHEAFFER BALLPOINT REFILLS.   Specify color (blue or black) and Fine, Medium, or Broad.

$3.00 each

SHEAFFER BALLPOINT REFILLS

SHEAFFER BALLPOINT REFILLSSHEAFFER BALLPOINT REFILLS

To buy please email Pentooling. Be sure and provide a shipping address including city and state/province so we can calculate shipping costs and get your order to you.INTERNATIONAL BUYERS PLEASE INCLUDE YOUR PHONE NUMBER SO YOUR POSTAL SERVICE CAN NOTIFY YOU WHEN REQUIRED.

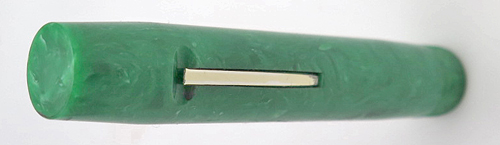

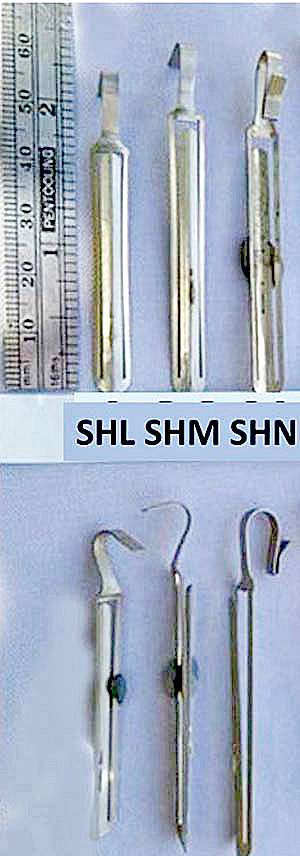

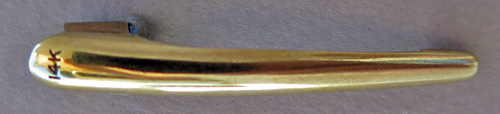

ITEM #SH PRESSBAR "SHL", "SHM" OR "SHN" (SPECIFY WHICH): SHEAFFER FACTORY ISSUED ORIGINAL PRESSURE BARS. New old stock Sheaffer parts; 3 different types of Sheaffer pressure bars like the ones you've pulled out that were too mangled up to get back in. Specify by letter (L through N) which you would like to order. A great way to keep your Sheaffers all original stock.

Size SHL fits a Balance barrel that is 3.14" long and also a barrel 2.95" long(with no sections). The bar itself is 2.14" (54.4 mm) long.

Size SHM: The bar is 2.40" (61.1 mm) long.

Size SHN fits a Balance barrel that is 3.35" long (with no section). The bar itself is 2.46" (62.5 mm) long.



SHL, SHM OR SHN $7

SHEAFFER FACTORY ISSUED PRESSURE BARS

To buy please email Pentooling. Be sure and provide a shipping address so a shipping cost can be calculated. International buyers please provide a phone # for shipping paper.

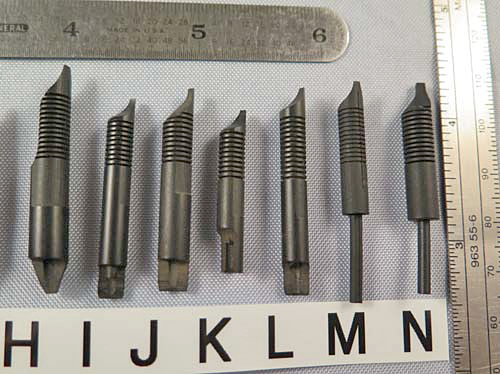

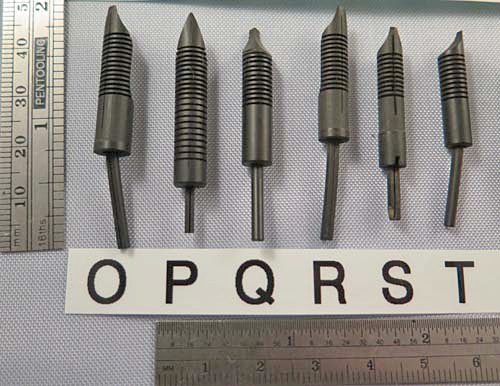

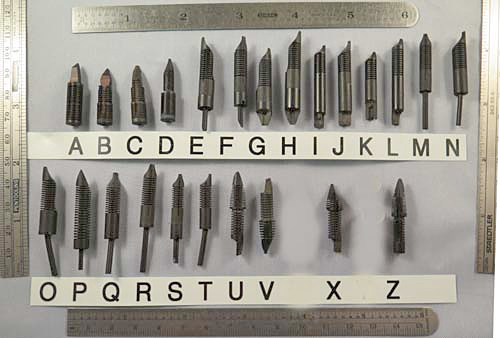

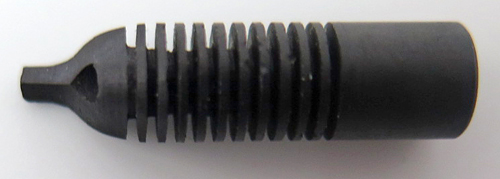

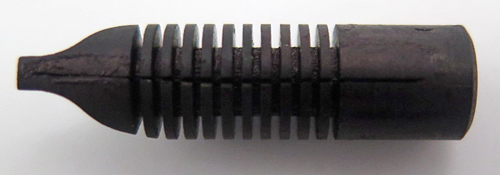

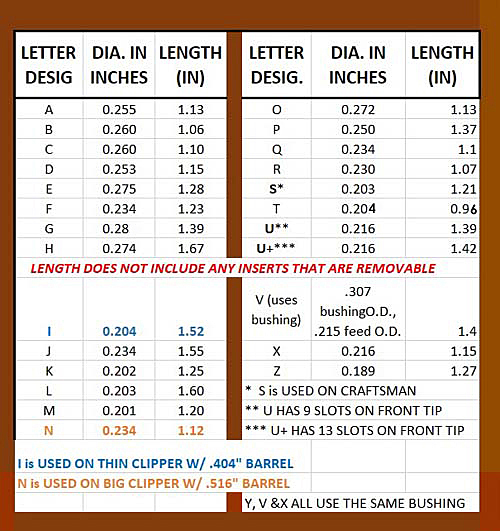

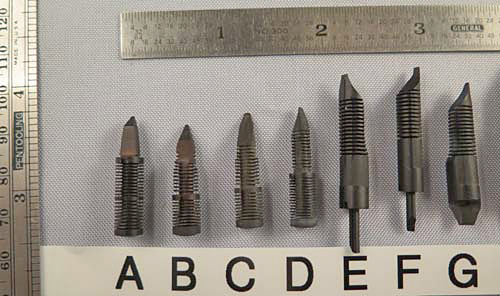

ITEM #SH FEED-: HERE IS A SAMPLING OF SHEAFFER FEEDS FROM A TO Z -  This is nowhere near all of Sheaffer's feeds used, but a scratch on the surface. To order, just use an item number with the letter you are interested in appended to "#SH FEED- ". A note about feeds U,V, and X: These all use the same bushing. You probably don't need this if the bushing stayed in your pen, but all 3 examples of feeds, U,V and X, came in a pen with this bushing screwed inside the section, and there is just one size bushing. The diameters of the feeds (of the part that fits into the hole in the section), is shown below.

FEEDS $12 each

SHEAFFER FEEDSSHEAFFER FEEDSSHEAFFER FOUNTIN PEN FEEDSSHEAFFER FOUNTIN PEN FEEDSSHEAFFER FOUNTIN PEN FEEDSSHEAFFER FEEEDS

To buy please email Pentooling. Be sure and provide a shipping address so a shipping cost can be calculated. International buyers please provide a phone # for shipping paper.

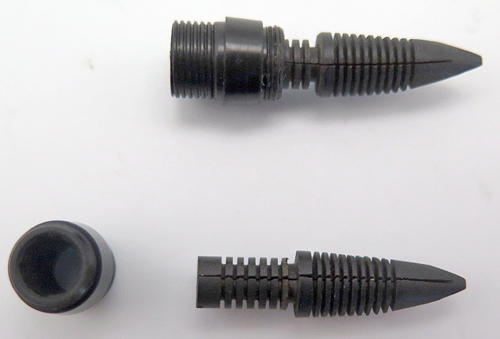

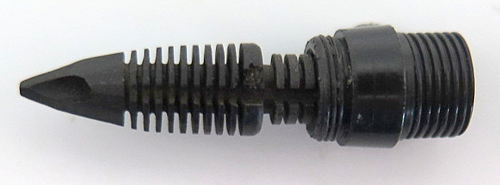

ITEM #MORE SH FEEDS- :   Another set of Sheaffer feeds; To order, just use an item number with the letter you are interested in appended to "#MORE SH FEEDS- XY", with "XY" replaced by the pair of letters shown below. Please note that the two feeds for standard sized, open nib Snorkels (AC & AD) come in (2) lengths, same diameter. The PFM nibs are new old stock, having been rescued by Dan Reppert on the way to a dumpster during the closing of the Ft. Madison Sheaffer factory.

Most $12;

PFMs (AA) are $20

FEEDS W/ COLLARS ARE $20

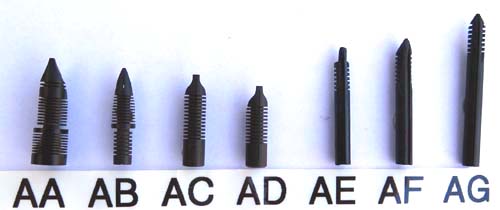

sHEAFFER FEEDS

Letter Desig. Dia. In Inches Length in inches Use in
AA  THERE IS ONLY ONE SIZE THERE IS ONLY ONE SIZE PFM
AB THERE IS ONLY ONE SIZE THERE IS ONLY ONE SIZE TRIUMPH SNORKEL
AC 0.234" 0.972" STD OPEN NIB SNORKEL
AD 0.234" 0.882" STD OPEN NIB SNORKEL
AE 0.172" 1.30"
AF 0.173" 1.73"
AG 0.180" 1.688"

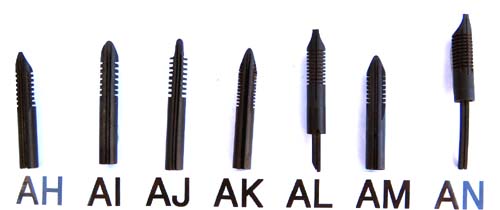

SHEAFFER FEEDS

Letter Desig. Dia. In Inches Length in inches Use in
AH 0.189" 1.231
AI 0.189" 1.3"
AJ 0.19" 1.37"
AK 0.196" 1.26"
AL 0.2" 1.05"
AM 0.2" 1.51"
AN 0.204" 0.94"

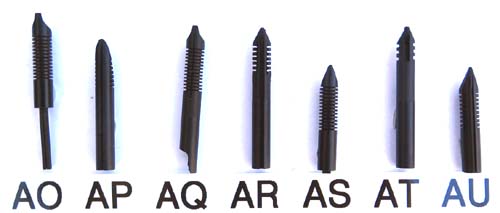

SHEAFFER FEEDS

Letter Desig. Dia. In Inches Length in inches Use in
AO 0.204" 1.04"
AP 0.204" 1.43"
AQ 0.204" 1.5
AR 0.204" 1.54"
AS 0.205 1.208"
AT 0.205" 1.54"
AU 0.205" 1.225"

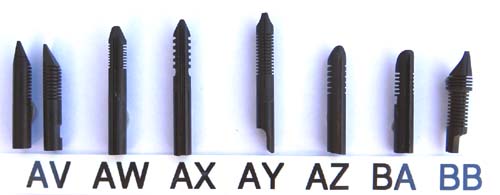

SHEAFFER FEEDS

Letter Desig. Dia. In Inches Length in inches Use in
AV 0.205" 1.225"
AW 0.205" 1.46"
AX 0.206" 1.54" 5 teeth
AY 0.21" 1.52"
AZ 0.213" 1.23" 5 teeth
BA 0.215" 1.175" 6 teeth
BB 0.218" 1.163"

SHEAFFER FEEDS

Letter Desig. Dia. In Inches Length in inches Use in

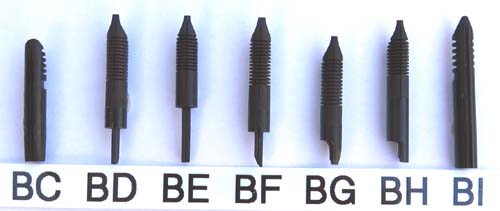

BC 0.22" 1.31"
BD 0.231" 1.22"
BE 0.234" 0.988"
BF 0.233" 1.3"
BG 0.233" 1.3"
BH 0.233" 1.54"
BI 0.234" 1.15" - 1.6"

SHEAFFER FEEDS

Letter Desig. Dia. In Inches Length in inches Use in

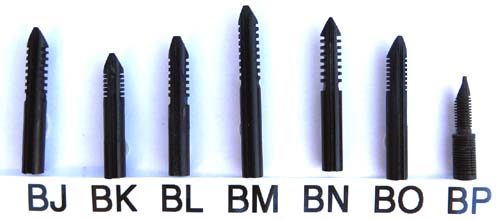

BJ 0.234" 1.36" - 1.72" 7 teeth
BK 0.234" 1.46"
BL 0.234" 1.6" 6 teeth
BM 0.234" 1.75" 7 teeth
BN 0.235" 1.681"
BO 0.235" 1.5"
BP 0.242" 1.160"

SHEAFFER FEEDSSHEAFFER FEEDS

Letter Desig. Dia. In Inches Length in inches Use in

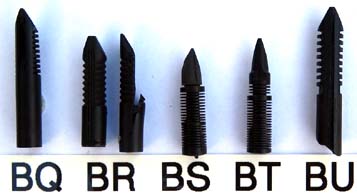

BQ 0.250" 1.50"
BR 0.251" 1.16"
BS 0.259" 1.160"
BT 0.259" 1.160"
BU 0.268" 1.40"
BV 0.233" 0.875 & 1.08" uses collar
BW 0.188" 1.0" uses collar

SHEAFFER FEEDS

Letter Desig. Dia. In Inches Length in inches Use in
BX 0.216" 0.943" uses collar
BY 0.216" 1.39" uses collar



To buy please email Pentooling. Be sure and provide a shipping address including city and state/province so we can calculate shipping costs and get your order to you.Please make sure your Paypal profile has the correct shipping address. We use them to generate shipping labels and I can only ship to the address they give me. All items will be shipped to your Paypal address. Please update your address with Paypal when you pay,and please make sure to provide Paypal with a correct, precise and detailed shipping address.

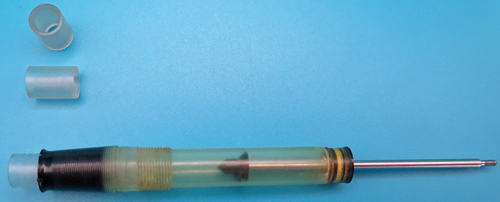

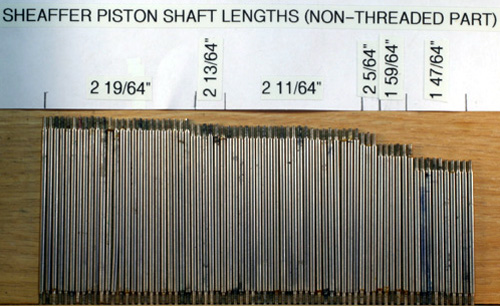

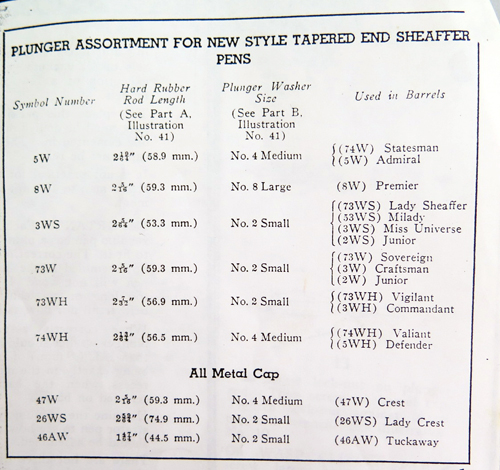

ITEM #SHEAFFER PISTON/PLUNGER SHAFTS:  Sheaffer's repair manuals list 14 different lengths of these used. If you need one, try to figure out the length (BETWEEN the threads) and I'll see If I have it.

I have these below; note that the longest I have is 2 19/64". Some of the old Vacuum Fil(l)s had longer, but they are rare and I have none.

I also have some hard rubber coated ones. If you need one of them, please specify the length between thread shoulders AND THE DIAMETER OF THE TOP WASHER. The nuts on those are tricky to get off and you'll need to do that yourself. If you want an interpretation of which lengths are used in which pens, try studying this link, pages 12 & 13:

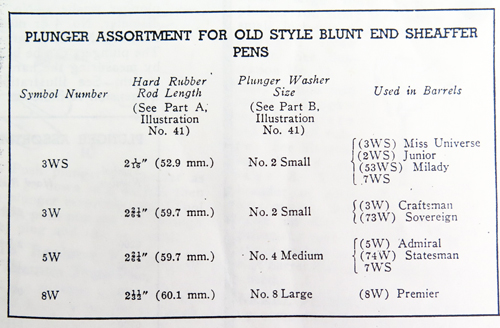

The manual is "Manual for Trained Pen Repairmen, 1941; 11/41 No. F29, 25 pp.".  This is the link https://pencollectorsofamerica.org/reference-library/sheaffer/

BARE STEEL $15 ea

HARD RUBBER COATED $20 ea

If you need a size that you don't see here, Gerry Berg can make them for you. He's at  gberg@sbc.edu

SHEAFFER PLUNGER/PISTON SHAFTS

To buy please email Pentooling.Be sure and provide a shipping address that the US Postal Service will accept. If you're outside the US,try your address on Google Earth. If they can find it, it is probable that the USPS will accept it.

ITEM #WIDGET: THIS IS AN ADAPTER TO MAKE AN OLDER STRATOWRITER OR FINEPOINT BALLPOINT WORK WITH MODERN DAY SHEAFFER REFILLS.  You put these in the tip of the barrel, make a spacer for the rear of the new filler (a "Doober"), and use a new Sheaffer refill for your old ballpoint. If you want to find out how to make a Doober, Click to read more...

$10

WIDGETS FOR OLD SHEAFFER BALLPOINTSEVOLUTION OF THE SHEAFFER WIDGET
To buy please email Pentooling. Be sure and provide a shipping address that the US Postal Service will accept.

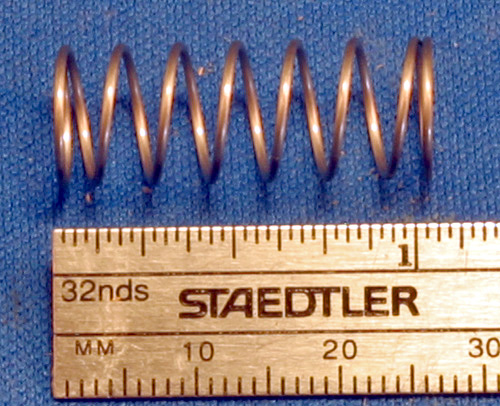

ITEM #PFMSPRING: AMERICAN MADE STAINLESS STEEL REPLACEMENT SPRINGS FOR PFMs. Won't rust. 1" long X .4" Outside diameter.

$5

SPRING FOR PFM FOUNTAIN PEN

To buy please email Pentooling.Be sure and provide a shipping address that the US Postal Service will accept. If you're outside the US,try your address on Google Earth. If they can find it, it is probable that the USPS will accept it.

BELOW ARE THE ARCHIVES OF SOLD/DISCONTINUED ITEMS AND REALIZED PRICES

.

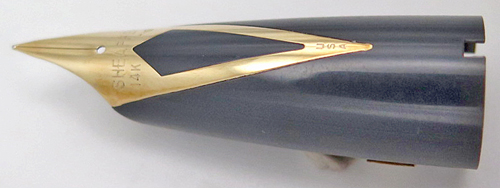

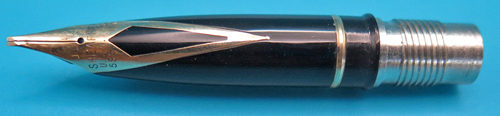

ITEM #5825: SHEAFFER CONNAISSEAUR FRONT END UNIT IN FINE. 18K NIB, NEW OLD STOCK.

$55 SOLD AMERICAN!!!

SHEAFFER CONNAISSEAUR FRONT END UNIT IN FINE. 18K NIB, NEW OLD STOCK

SHEAFFER CONNAISSEAUR FRONT END UNIT IN FINE. 18K NIB, NEW OLD STOCK

To buy please email Pentooling. Be sure and provide a shipping address including city and state/province so we can calculate shipping costs and get your order to you.INTERNATIONAL BUYERS PLEASE INCLUDE YOUR PHONE NUMBER SO YOUR POSTAL SERVICE CAN NOTIFY YOU WHEN REQUIRED.

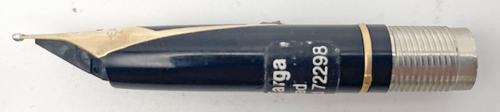

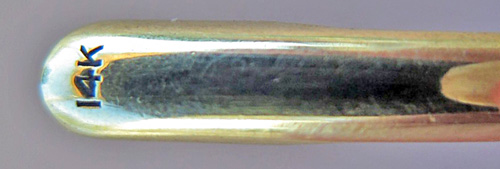

ITEM #TARGANIB14K: 14K NIBS FOR SLIM TARGA FOUNTAIN PEN.  NEW OLD STOCK. Available in Broad only. Please be aware of the size differences between the Standard sized Targa and the Slim Targa: The standard sized Targa has an inside diameter on the barrel threads of 0.384" and the Slim Targa barrel has an inside diameter of 0.293".

$40 sold out!!

14K NIBS FOR SLIM TARGA FOUNTAIN PEN. NEW OLD STOCK.

14K NIBS FOR SLIM TARGA FOUNTAIN PEN. NEW OLD STOCK.

To buy please email Pentooling. Be sure and provide a shipping address including city and state/province so we can calculate shipping costs and get your order to you.INTERNATIONAL BUYERS PLEASE INCLUDE YOUR PHONE NUMBER SO YOUR POSTAL SERVICE CAN NOTIFY YOU WHEN REQUIRED.

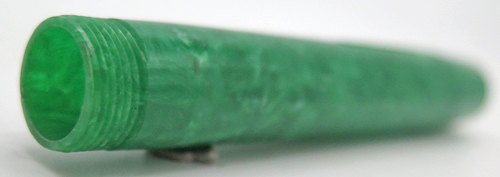

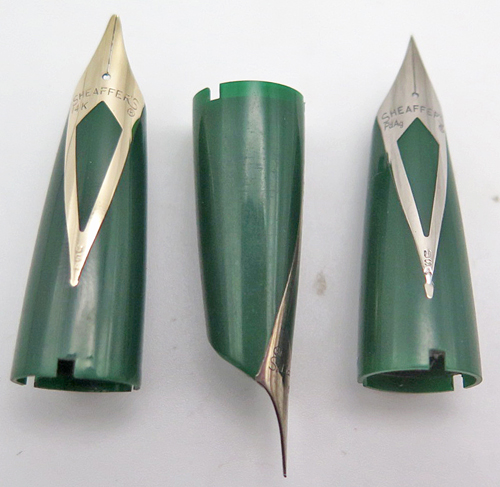

ITEM #5119: SHEAFFER FINE INLAID 14K NIB/SECTION IN GREEN.  No cracks. Excellent condition.

$65 SOLD AMERICAN!!!

SHEAFFER fINE INLAID 14K NIB/SECTION IN GREEN

To buy please email Pentooling. Be sure and provide a shipping address so a shipping cost can be calculated. International buyers please provide a phone # for shipping paper.

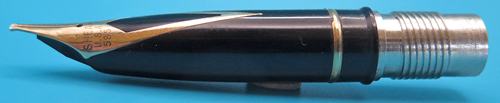

ITEM #5474: NIB/FEED/SECTION (front end) FOR SHEAFFER MODERN BALANCE.   18K medium, two tone nib. This front end will also fit the Connaisseur, but the Connaisseur doesn't hve a two tone nib. Tested and smooth writing.

$55 SOLD AMERICAN!!!

NIB/FEED/SECTION (front end) FOR SHEAFFER MODERN BALANCENIB/FEED/SECTION (front end) FOR SHEAFFER MODERN BALANCE

To buy please email Pentooling. Be sure and provide a shipping address including city and state/province so we can calculate shipping costs and get your order to you.INTERNATIONAL BUYERS PLEASE INCLUDE YOUR PHONE NUMBER SO YOUR POSTAL SERVICE CAN NOTIFY YOU WHEN REQUIRED.

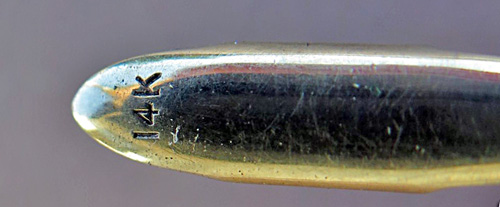

ITEM #TRZNIBGOLD: 14K NIBS FOR TRZ FOUNTAIN PENS. New Old Stock. Available in Fine only.

$25 SOLD OUT!!

14K NIBS FOR TRZ FOUNTAIN PENS.

To buy please email Pentooling. Be sure and provide a shipping address including city and state/province so we can calculate shipping costs and get your order to you.INTERNATIONAL BUYERS PLEASE INCLUDE YOUR PHONE NUMBER SO YOUR POSTAL SERVICE CAN NOTIFY YOU WHEN REQUIRED.

ITEM #5269: SHEAFFER HOLSTEIN FLAT TOP FOUNTAIN PEN CAP.   This is for a very large pen; it's too large of a diameter for other over sized Sheaffers that I've tried it on. The inner cap diameter is 0.517" before the threads start. The outer diameter on the cap band is 0.587" . The outer length is 2.464".White dot on cap.

$40 SOLD AMERICAN!!!

SHEAFFER HOLSTEIN FLAT TOP FOUNTAIN PEN CAP

To buy please email Pentooling. Be sure and provide a shipping address so a shipping cost can be calculated.
ITEM #tbd:



$xxx

To buy please email Pentooling. Be sure and provide a shipping address including city and state/province so we can calculate shipping costs and get your order to you.Please make sure your Paypal profile has the correct shipping address. We use them to generate shipping labels and I can only ship to the address they give me. All items will be shipped to your Paypal address. Please update your address with Paypal when you pay,and please make sure to provide Paypal with a correct, precise and detailed shipping address.
