U.S. Made Waterman Parts

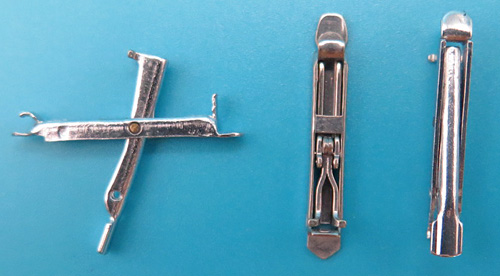

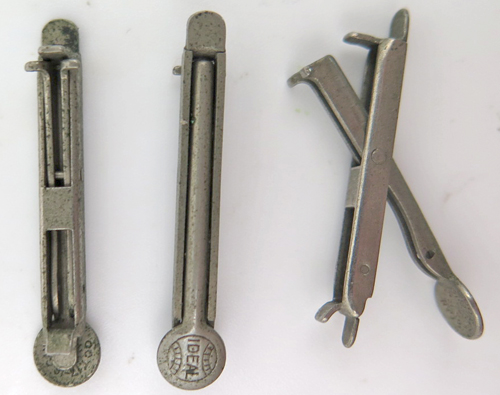

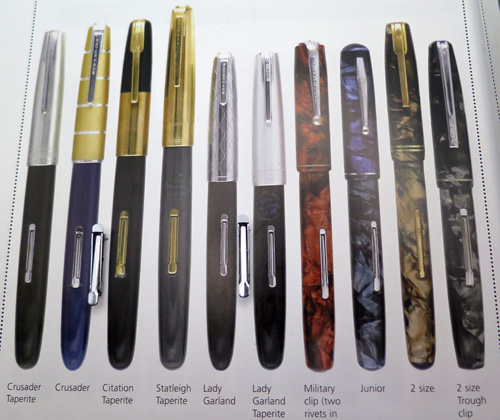

ITEM #LEVERBOX (200-3-6): WATERMAN LEVER BOXES FOR MID VINTAGE WATERMAN.  New old stock lever boxes. Slot needs to be .66" long/ 16.85mm for this lever box to fit. Pens that these lever boxes fit are shown in the photo. And I'm sorry to say these won't fit a 52 pen.

$15 EACH

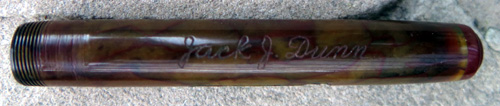

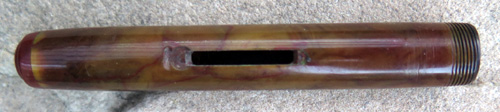

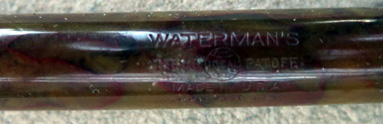

ITEM #5712: WATERMAN PATRICIAN BARREL IN ONYX.  Faded but solid & uniform color. Strong imprint. Has persnalization on the barrel inspired by Jack J. Dunn.

$50

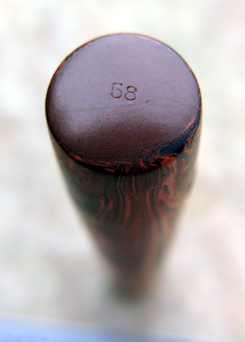

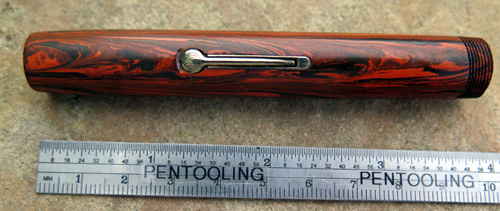

ITEM #4880: WATERMAN's #58 WOODGRAIN BARREL. Has a good box, lever, & pressure bar with the lever being nickel plated. Everything, including the threaded end is in excellent condition. Largest diameter (above the lever) = .572", length = 3.874". The "58" on the end of the barrel is good and crisp. Please take a look at the photo and decide on your own definition of the color/pattern; there seems to be a lack of agreement on which is which, Woodgrain or Ripple. In any event, it does not have the word "RIPPLE" contained in the imprint as pens with the later pattern did.

$305

ITEM #BARH2O-X: WATERMAN's PRESSURE BARS. To order, ask for Bar H2O-X, wherer X is the number after the dash below. Sorry, I can't tell you which length which pen uses; I haven't found that page from the service manual yet. If you have, please send it.

And I have no lever boxes available.

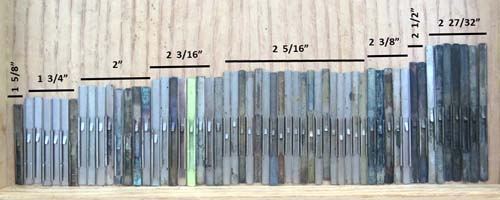

Pressure bars are available in the following lengths:

BAR H2O-1, 1 11/32" = 1.344" (fits 52 1/2 V) SOLD OUT

BAR H2O-2, 1 33/64" = 1.516"

BAR H2O-4, 1 5/8"= 1.625" SOLD OUT

BAR H2O-6, 1 3/4" = 1.75"

BAR H2O-8, 2"

BAR H20-10, 2 3/16" = 2.188"

BAR H2O-12, 2 5/16" = 2.312"

BAR H2O-14, 2 3/8" = 2.375"

BAR H20-16, 2 1/2" = 2.500" SOLD OUT

BAR H2O-18, 2 27/32" = 2.844"

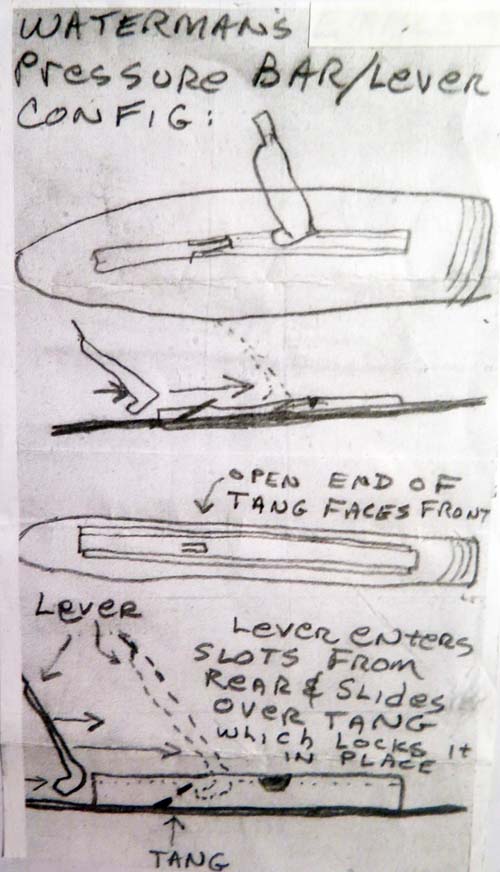

By the way, the sides of these pressure bars are oriented toward the front of the pen as shown in the second photo below. (I've always had a rough time remembering that when the time came for putting the pen back together)

$14 ea

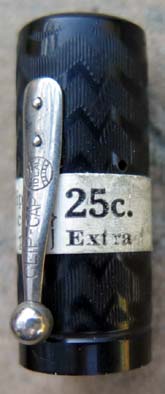

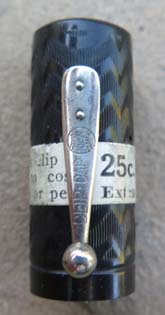

ITEM #5909: NOS WATERMANs SIZE 46 SAFETY PEN CAP, WITH CLIP.  Nickel plated trim on this giant $0.25 option. Still has a very clear, clean label.

Inside diameter = 0.518", outside diameter = 0.593", length = 1.504".

$520

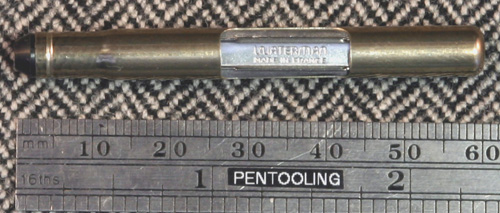

ITEM #CF REFILL: BALLPOINT REFILLS FOR OLDER AND LATER CFs AND OTHER WATERMAN's BALLPOINTS.   I had a batch of those funky old refills with the flared back ends made. These fit BOTH of the Waterman's CF ballpoint releases from the 50s and the ones from the 80s. They fit most of the other older Waterman's ballpoints shown below, the ones with the long monster springs. And they fit the newer 80s release CFs with the fold-over rube goldberg holders for the fillers (one of these pens is shown at the bottom of the first photo). They fit a lot of other early Waterman's ballpoints that aren't shown below; If yours has a flared back end on the refill and the monster spring, these will fit.The second photo shows typical Waterman's older non-CF ballpoints that these fit as well as a later "Classic" CF released in the 80s. The last photo shows the dimensions of the original filler that these replace. Black ink w/ a tungsten carbide ball.

We also made a different version of these that fits Cartier Must, Trinity, Vendome, Cougar, and Panther. Ask about those if interested.

$10

ITEM #H20CONV: WATERMANS PISTON CONVERTER.  Fits later non-CF Watermans fountain pens.

$15

ITEM #CF AERO:  WATERMAN CF CONVERTORS. Hard to find convertors that fit the original 50's vintage and the 80's vintage ("CLASSIC") Waterman's CF pens. Section end is .236" dia. (5.99 mm); back end is .260" dia. (6.60 mm), length = 2.377" (60.42mm). There is a rubber conical seal/seat built into the front of the convertor. These are Squeeze type, not piston.

TEMPORARILY OUT OF STOCK $40 OUT OF STOCK!

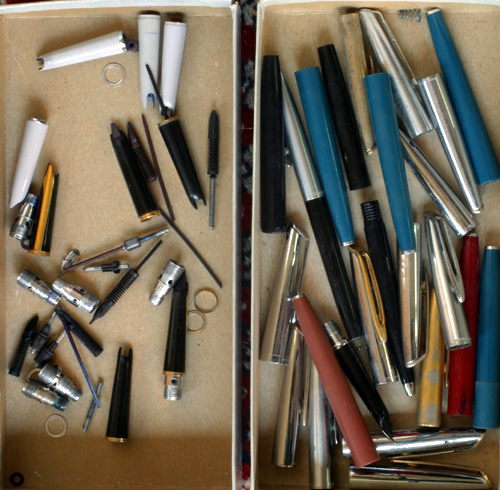

ITEM #CF PARTS: COMMON CF FRONT END PARTS. If you're looking for any of these CF front end parts, drop me an email. I usually have most off them. I don't have any nibs. I also have limited number of parts for the CF front ends that use the fatter feed.

CF FEED $12

CF SHELL, PLAIN $12

CF CONNECTOR $10

CF INNER SECTION $17

ITEM #CF PARTS and PENS:  NEED CF PARTS? SEND ME AN EMAIL. Sorry, there are no whole front ends left.

$?? negotiable



ITEM #4356: REFILLS FOR WATERMAN'S CHECKING PENCIL, #28 (RED).   I've never seen the pencil these fit in, but if you have one, here are some refills for it, along with a cool box. Diameter = .22" (7/32", 5.6mm).

$15 SOLD AMERICAN!!!

ITEM #H2O CLNDR: WATERMAN'S NICKEL PLATED FOUNTAIN PEN DESK BASE CALLENDAR. Scalvaged from a broken marble Watermn's desk base, this piece is very solid and in great functional, clean shape.

$125

ITEM #5713: WATERMAN PATRICIAN BARREL IN BLACK.  Solid with strong imprint.

$75 SOLD AMERICAN!!!

ITEM #tbd:



$xxx
